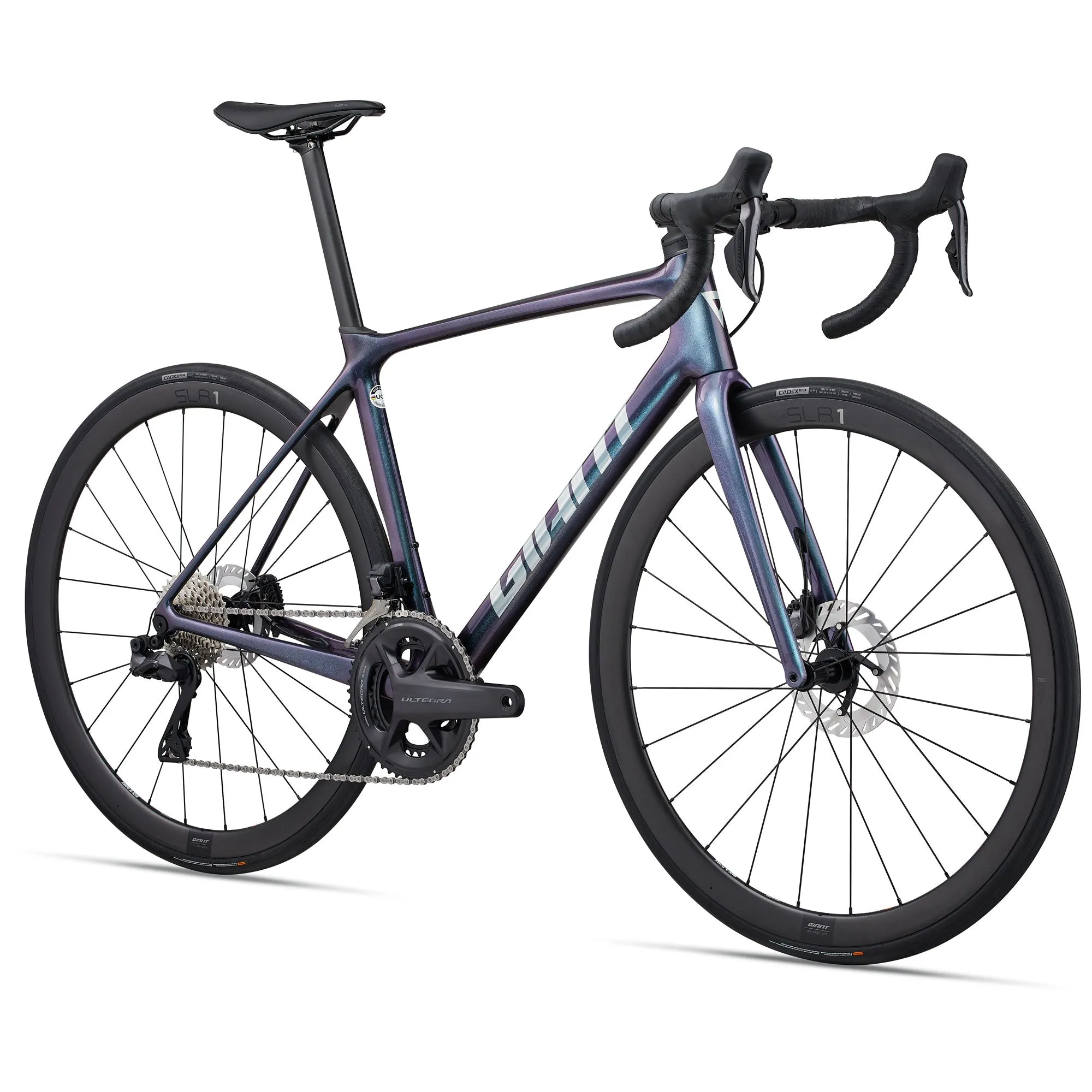

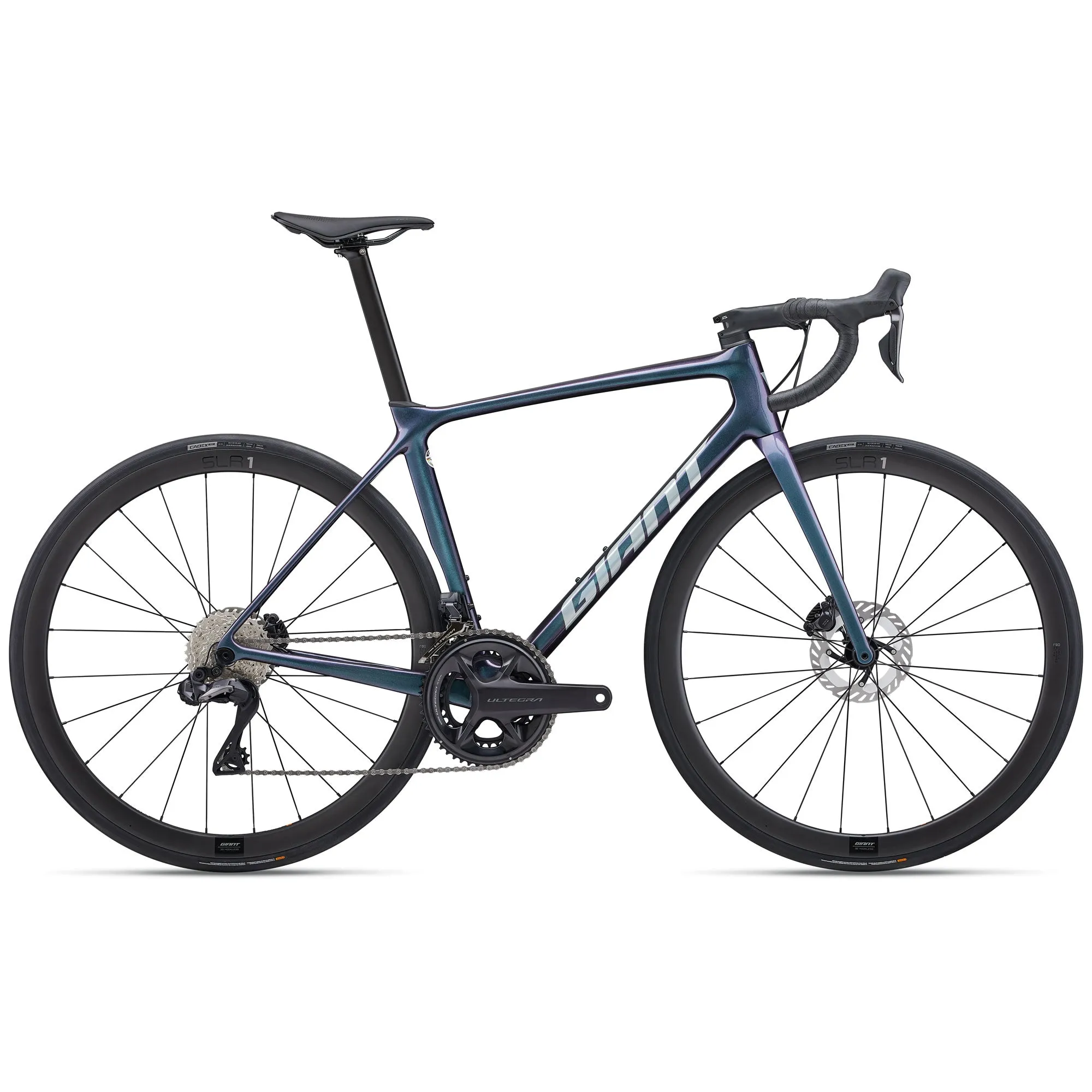

About Giant TCR Advanced Pro Disc 0 Di2 2024
Climb, corner and descend with speed and efficiency. From the mountains to the flats, in all types of conditions, this lightweight composite road racer takes you to the next level.

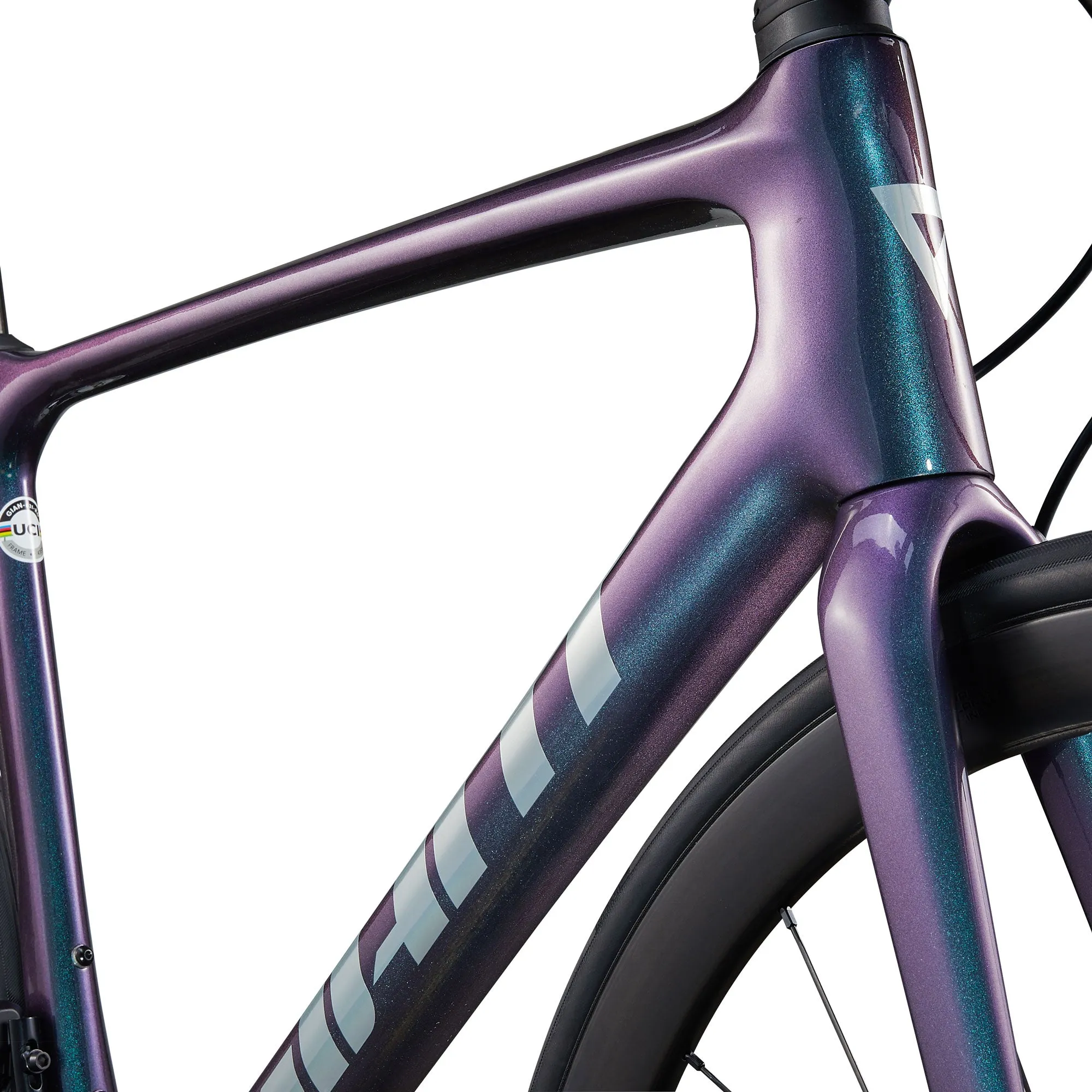

This podium-seeking road racer is engineered with an Advanced grade composite frameset. It boasts an outstanding stiffness-to weight ratio and aerodynamic tube shaping in the head tube, down tube and fork. It also features added frame and fork clearance for larger diameter tyres up to 32mm, making it a versatile race machine for all types of road conditions. With its proven Compact Road geometry and road-smoothing Variant seatpost, it’s a race-tuned performer that excels in all aspects of road riding.
Key Performance Factors
Class-leading efficiency: Combining best-in-class stiffness-toweight with strategically placed aero tube shaping, this frameset is engineered for faster climbing, explosive acceleration and unyielding pedalling stiffness for race-winning performance.
Advanced aerodynamics: This is where the TCR’s most quantifiable gains can be found compared to previous generation models. Every tube shape was analysed, engineered and tested to create an overall structure with significantly lower drag at a wider range of yaw angles.

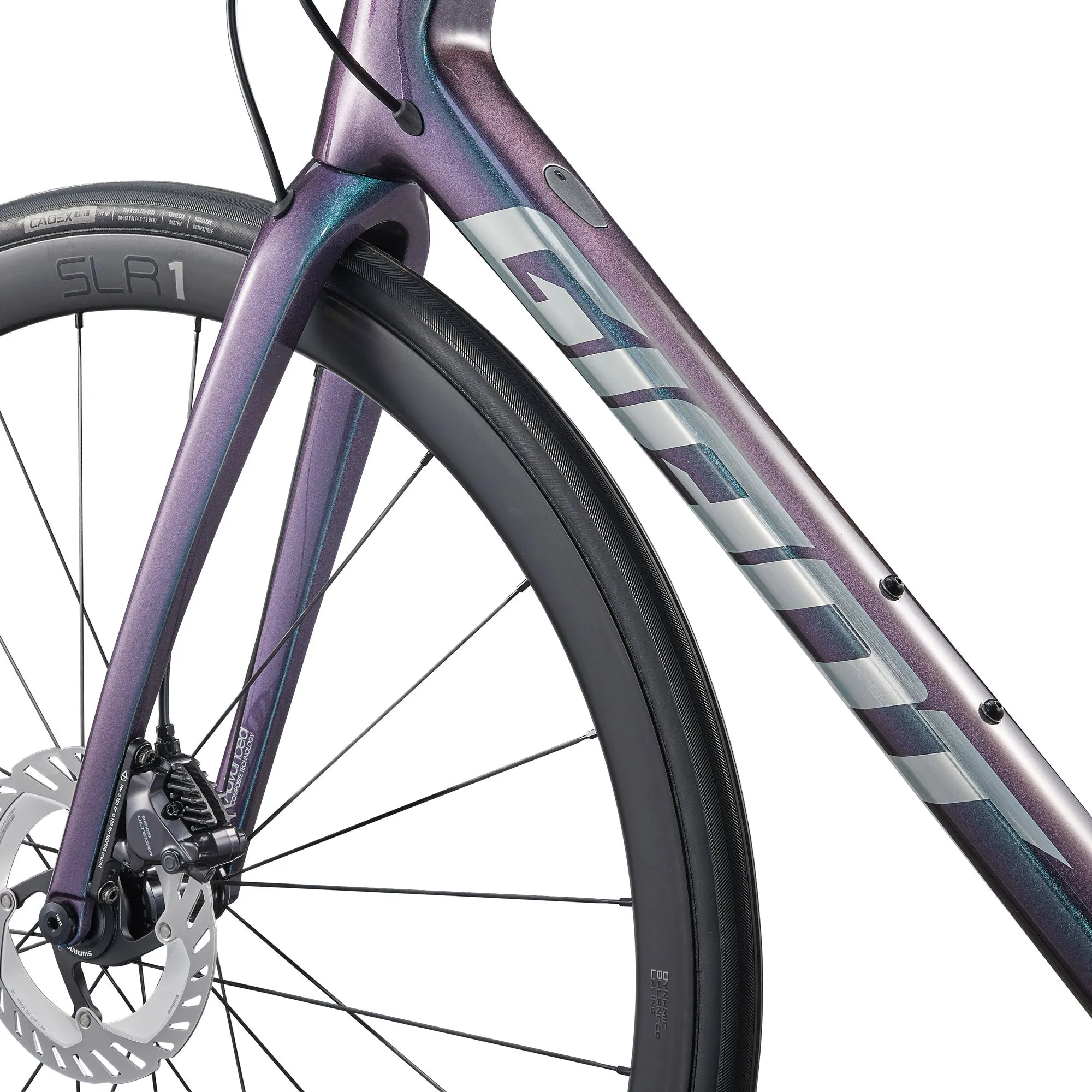

Total control: Integrated disc brakes deliver smooth, powerful stopping power and modulation for added control in variable weather and road conditions. Flat mounts and thru-axles boost stiffness and improve overall handling, while added frame and fork clearance allows for larger diameter tyres up to 32mm.
Frame Geometry (units in mm unless otherwise indicated)
| Frame | XS | S | M | M/L | L | XL |
| Seattube Length | 425 | 445 | 470 | 500 | 530 | 560 |
| Seattube Angle (Degrees) | 74.5 | 74.0 | 73.5 | 73.0 | 73.0 | 72.5 |
| Toptube Length | 520 | 535 | 550 | 565 | 580 | 600 |
| Headtube Length | 120 | 130 | 145 | 165 | 185 | 200 |
| Headtube Angle (Degrees) | 71.0 | 72.25 |
73.0 | 73.0 | 73.0 | 73.0 |
| Fork Rake | 45 | 45 | 45 | 45 | 45 | 45 |
| Trail | 72.1 |
64 | 59.2 |
59.2 |
59.2 |
59.2 |
| Wheelbase | 976 | 977 | 980 | 991 | 1006 | 1020 |
| Chainstay Length | 405 | 405 | 405 | 405 | 405 | 405 |
| Bottom Bracket Drop | 72 | 70 | 70 |
67 | 67 | 67 |
| Stack | 517 | 528 | 545 | 562 | 581 | 596 |
| Reach | 376 | 383 | 388 | 393 | 402 | 412 |
| Standover Height | 706 | 725 | 747 | 773 | 800 | 816 |
| Stem Length | 80 | 90 | 100 | 110 | 110 | 120 |
| Crank Length | 170.0 | 170.0 | 172.5 | 172.5 | 175.0 | 175.0 |
| Wheel Size | 700C | 700C | 700C | 700C | 700C | 700C |
